Working with Models

Insert Model

Models are inserted to your drawing directly from pCon.catalog. Click the pCon.catalog logo (pCon.catalog_new) on the Start or the Toolbar.

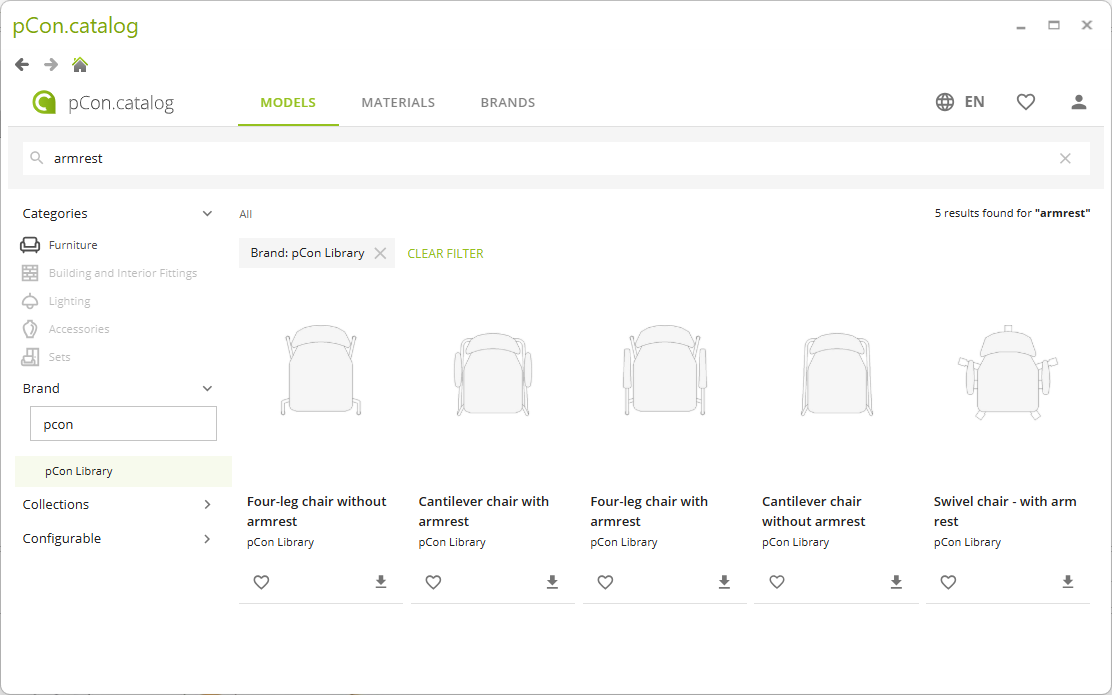

Browse pCon.catalog, Models section for your desired manufacturer and model. Click the download icon (pCon.planner_models_download_icon) and add the model to your drawing.

Alternatively, Models can be imported in PEC, PBOX or DWG file format.

pCon.planner_models_catalog

Configure Models

pCon.planner_models_open_configure_1

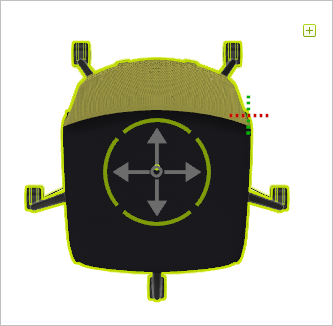

Depending on the data available in pCon.catalog, a model can be configurable. Models that are configurable are marked with the edit icon (pCon.planner_editing_objects) as soon as you select them.

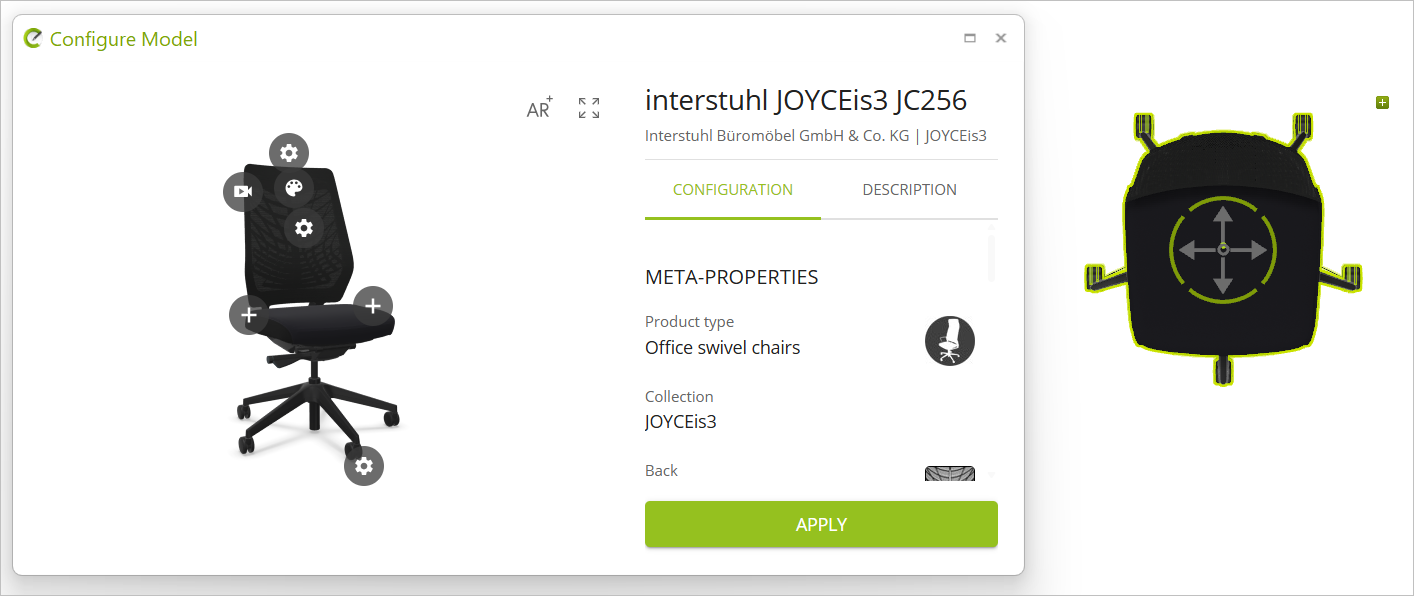

See image on the left. Clicking the icon opens the Configure Model window in pCon.catalog. This is where you configure your model as needed.

Clicking on Apply transfers your changes to the model in your drawing.

pCon.planner_models_open_configure_3

pCon.planner_models_open_configure_2

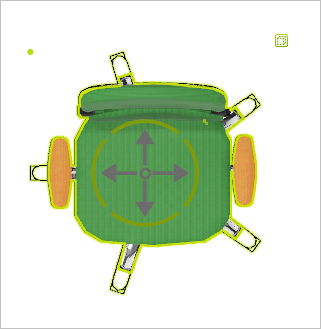

When selected, models that cannot be configured are displayed as shown in the image on the left.
